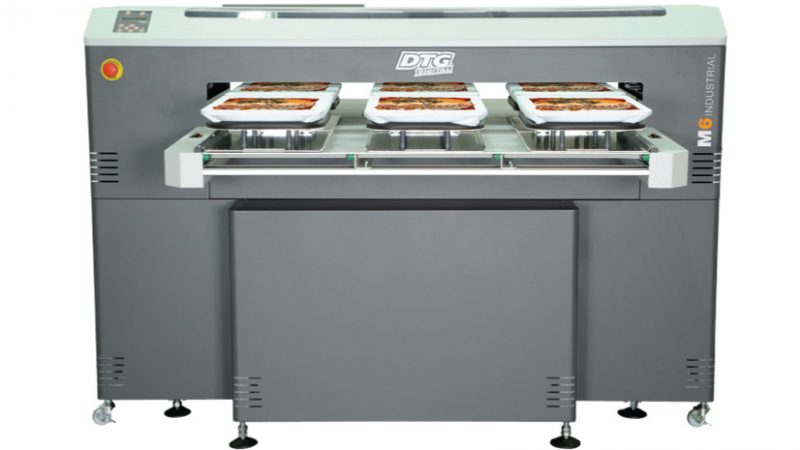

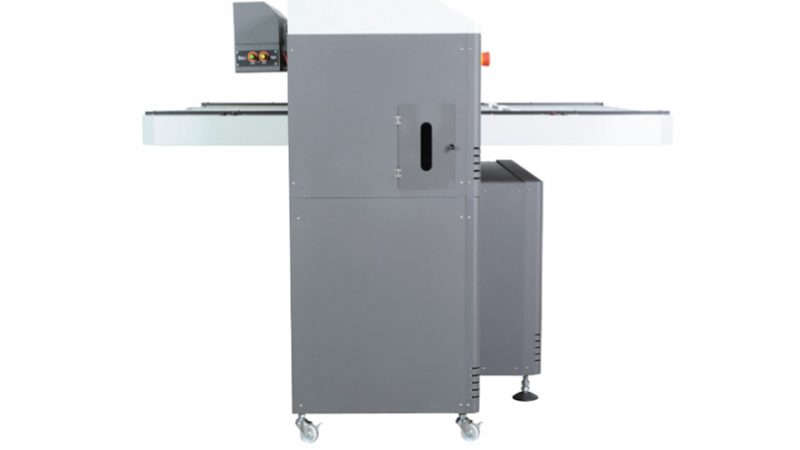

DTG Digital – M6 Industrial DTG Printer

Since the development of the first M Series, DTG have continued to develop advanced garment and textile printing systems.

The M6 Series features DTG bespoke firmware specifically created for optimal print quality, working with higher production speeds, and advanced ink control for accurate placement onto fabrics and garments using WIMS (White Ink Management System) and ONE PASS print technology. The M6 also features ink mist extraction as well as temperature and humidity monitoring to ensure even greater print management control.

The DTG M6 Prints all over T-Shirts, hoodies, tea towels, mouse mats, bags, jeans, fabric panels, and so much more. The DTG Digital M6 supports the latest 4-2-1 platen system that gives a massive 1150mmx632mm (extendable up to 750mm) which gives the ability to print 12 Medium, 6 Large, 3XL and 1 Supper size XXL plus full bed panel printing! ”

Inks 46 pcl ink drop size scalable through all resolutions.
Fabrics DTG Inks print on 100% dark and light cottons and 60/40 or 50/50 blends including: Cotton, Cotton blends, Polyester, Poly-Viscose, Rayon, Silk, Wool, Spandex.
Printhead Piezo 180 nozzles per channel (8 channels = 1440 nozzles)
Colour 8 (Dual CMYK or 4* White plus CMYK)
Print Area 1150mm x 632mm (Max 750mm)
Drive Processor driven conveyor (fixed bed)
Inks DTG inks – Piezo compatible pigments.
Ink Delivery Bottle – pressurised CYMK, Bottle – pressurised re-circulation – white (WIMS) https://www.yes-store.co.uk/
Operating System Microsoft® Windows® XP, Vista or above
DTG Rip Included YES – Kothari Print Pro
Electrical 240V / AC
Physical Dimensions 1810mm (W) 1250mm (H) 1300mm (L)
Weight 170kg (375lb) (boxed weight will vary)
Standard Accessories 3x – M6 4-2-1 Platen systems which can give you up to (3 X-Large, 6 Large & 12 medium), Full set of Inks (500ml of each CMYK & 1ltr of W), Cleaning and Maintinance Set, DTG Print Pro Rip, Pre-treatment to work white inks & machine stand built-in
Optional Accessories Pre-Treat Machines (PTM or EZ-Treat), Heat Press (DTG4s), Tunnel Dryer or Draw Dryer
Warranty 12 Months (1-Year) Guarantee

DTG Digital is perfect for whatever Garment or Textile industry your business produces for. Using the right ink does make all the difference. DTG Inks work on 100% dark and light cottons and 60/40 and 50/50 blends.

DTG White Ink Management System (WIMS)

DTG Interchangeable Platen System

DTG M2 vs Single Platen DTG | Black Garment Speed Test

Introducing DTG M-Series IOS

Industrial all steel components with servo driven accuracy — Its built TOUGH! Bespoke firmware designed for textile and garment printing

  • Intelligent integrated RIP software with patented white under-base
  • Print area: 1150mmx632mm (Max 750)
  • WIMS (White Ink Management System)
  • iQ Interweave – Eliminates banding at all resolutions
  • ONE PASS print technology
  • Speed – Prints 50+ large graphics on white/lights garments per hour
  • Prints 25+ large graphics on dark garments per hour
  • 4-2-1 Platen System: 12 Medium / 6 Large / 3 XL / 1 Super Size XXL / All over printing option
  • Production – Prints multiple garments and different images at the same time
