First Commercial Direct-To-Film Transfer Printer to Fit through a standard doorway is HERE!
Digital HeatFX’s – DFT 12H2 Direct to Film Solution
There is simply no better way to produce amazing quality t-shirt transfers – especially at high volume.
DTF Printers are ALREADY powering some of the biggest names in customization.
The “NEW” DTF-12H2 Digital Heat FX Printer produces brilliant digital transfer sheets, handling everything from single color shirt labels, left chest logos through to full-size jacket back custom prints.

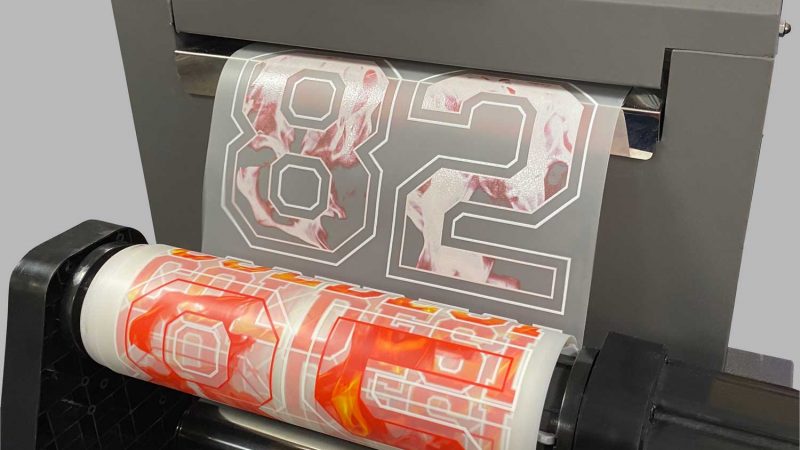

The DTF printer uses PET transfer film which is translucent so you can see the design underneath the film when you later heat-press it onto the garment. The PET film has a thickness of around 0.75mm which allows for better transfer characteristics.

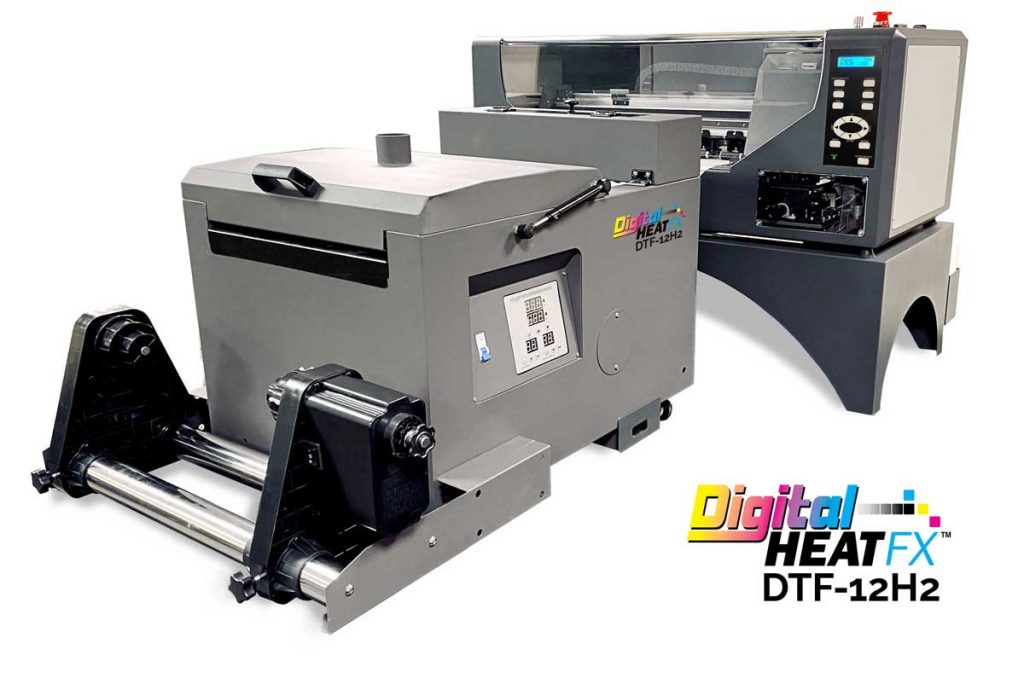

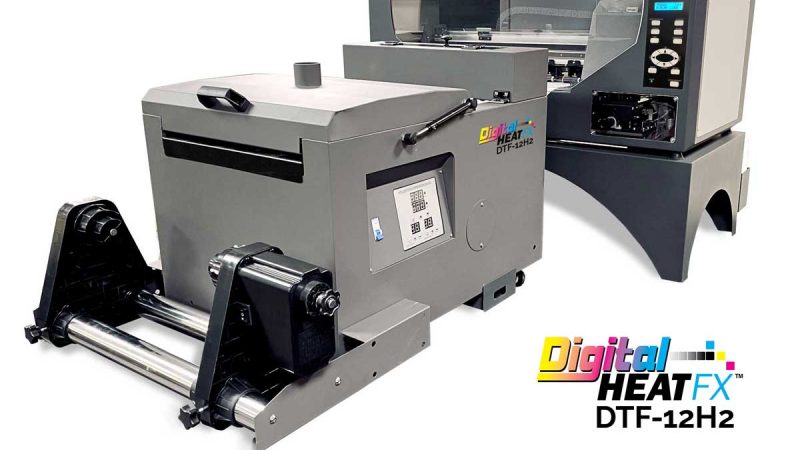

Introducing the Digital HeatFX – DTF-12H2
- It’s Affordable – no more than a standard Direct to Garment printer, and a fraction of the cost of high volume DTG options
- It’s Fast – Prints around 50, 8”x10” transfers an hour!
- It’s Easy to use – Comes with full training & support
- It’s Compact for a commercial high-volume machine – It fits through a standard door!
The DTF-12H2 is a 2 head Direct-to-Film printer featuring a 12” wide print field. It produces vibrant full-color prints that:
- Adhere to almost any garment
- Are perfect for tough placement
- Have just a 10 second initial press time
- Last through dozens of wash cycles
What are the Advantages of DTF?
- Faster Machine Output than DTG or White Toner
- Prints on virtually all material types.
- Double Print Head Technology
- Separate White Ink Channels
- As Durable as Screen Printing (over 50 washes**)
- Beautiful Digital Gradients and HDR Colors
- Everything you need to get started including Training and Support.
How does a DTF Printer work?
The printer has a dual print head design that lays down the colors in a blend of CMYK colors with the first printhead, and then lays down a white underbase on top of the colors in perfect alignment so that you do not have any white peeking out.
Adhesive powder is then automatically added to the back of the transfers. It’s the unique powder adhesive coating that gives DTF prints their signature soft touch.
Instead of thick transfer films, or vinyl, the Direct to Film Process has only two ingredients. The ink, and a thin coating of powered adhesive.
Let’s Face it – you own a DTF Printer to make money, RIGHT!
“So, What makes Digital Heat FX Different”
Faster Printing –
With Multiple Industrial Print Heads!
This 12H2 DTF printer has a dual print head design that lays down the colors in a blend of C,M,Y,K,LM,LC colours with the first printhead, and then lays down the perfect amount of white underbase on top of the colors in perfect alignment with the second so that you do not have any white peeking out.
The alignment is on the film, rather than on the bumpy fabric of the shirts so it creates a crisp design edge that you can’t even get with traditional screen printing.
Includes Print Optimizer Rip Software
As part of a Digital HeatFX system, which includes the Print Optimizer software, you will have ultimate control over the ink laydown. If you are doing blended gradients you can dial in the color accuracy on a per-channel basis.
If you are doing single color logos on white shirts, you can dial down the ink flow and put just the right amount of ink to make the shirt pop without ink waste.
Can I Learn How to Use it?
YES! The DTF-12H2 is extremely easy to use. It has reduced controls with automatic features, making it an operator’s dream machine.
Plus, when you become part of the Digital HeatFX family you automatically get access to our world-class training and support Online and In Person.
Our online, self-paced training course will walk you through each step of getting your DTF-12H2 Printer ready and each module has been created to help you reach ultimate success.
Plus, you ALWAYS have access to these courses! All your employees can go through our special training program so that everyone on your team is prepared.
But odds are, you are just getting into DTF printing yourself. So, what happens after you finish training? Don’t worry – WE ARE STILL HERE!
Support is what sets our customers apart. Our machine owners are equipped with a support team that is available whenever they need a helping hand Online 24/7 or In Person during office hours.
What can you Print with DTF?
The beauty of the DTF system by DigitalHeat FX is that you can store your high-quality transfers for up to 6 months or more. This allows you to sell printed transfers as is, on top of finished garments.
The custom apparel options are endless with DTF transfers. As mentioned earlier, they stick to a huge variety of fabrics and are the ideal solution for tricky placements.
Here’s just a few customization ideas:
- T-Shirts
- Brand Tags
- Polos
- Sweatshirts & Sweatpants
- Backpacks
- Aprons
- Flags
- Sports Uniforms
- Company Dress Shirts
- Running Shorts
- Fishing & Boating Shirts
| Ink Type | Digital Heat Fx 12H2 Digital Inks – for DTF printing available online through the YES Store – www.yes-store.co.uk |
| Fabrics / Merchandise | Digital Heat FX DTF-Series Inks print on 100% DTF Film and can be applied to nearly every fabric around including but not limited to Cotton, Cotton blends, Polyester, Poly-Viscose, Rayon, Silk, Wool, Spandex transfers onto all kinds of fabrics and merchandise that are not normally printable with DTG Printers |
| Printhead technology | 2 x Industrial Print Heads (6400 Nozzle – 66.8mm wide) |
| Printhead configuration | Trailing, staggered head technology (1x White & 1x C,M,Y,K,LM,LC) |
| Colour | Two White and C,M,Y,K,LC & LM |
| Print Area | Maximum Print Size = 300mm wide x upto 100mtr |
| Platen Drive System | Rool feed |
| Print Delivery | In-line One Pass Printing (Colour then White) |
| Ink Delivery | Bulk ink delivery system User fillable Ink Configuration W+ CMYK,LM,LC |
| Ink Managment | White ink re-circulation |
| Operating System | Microsoft® Windows® 10 or above |
| DTF Rip Included | Digital Heat FX’s Print Optimiser |
| Printer Electrical power voltage | AC 200-240V, 50Hᴢ/60Hᴢ (+-1Hᴢ) 10 amps |
| Powder & Oven Applicator Power | AC 200-240V, 50Hᴢ/60Hᴢ (+-1Hᴢ) 20 amps single phase |
| Machine operating environment | Operational temperature is 18-25ᵒC (64F – 77F) – Optimal Print Head Temperature is ideally 71.6F-73.4F (22-23C). Humidity 50-70% (Ideally Recommended is 60%) |
| Physical Dimensions | |
| Digital Heat FX 24H2 Printer | DTF 12H2 Printer – 39.75″w x 28.5″deep x 17.5″h (no stand) 29.5″h (with stand) |
| Digital Heat FX 24H2 Powder/Heater Applicator | DTF 12H2 Powder/Heater Unit – 27.5″w x 38″deep x 23.5″h |
| Machine Weights | |
| Digital Heat FX 24H2 Printer | 74 Kg |
| Digital Heat FX – 24H2 Powder/Oven Applicator | 37 Kg |
| DTF-24H2-Start Up Kit: | Online Training, Support Access to installation instructions/videos on Training website, 2-DHFX DTF White Ink 500ml each, DTF CMYK Ink 500ml each, DTF Adheasive White Powder 1Lbs, & DTF Film 60cm x 100m |
| Warranty – Printer | 12 months (1 Year) Cover Guard Warranty
*T&Cs Apply |
| Warranty – Powder/Heat Applicator | 12 months (1 Year) Cover Guard Warranty
*T&Cs Apply |
