ColDesi UV 24H3R UV DTF Printer
A UV DTF printer is built to make high quality custom decals, at volume, for a variety of applications.
And that technology is popular in the UK and Europe for the same reason they’re leading in new equipment sales abroad.
Because UV DTF printers are better than traditional printing methods for making custom stickers or product marking. They save time and money while offering more options.
In other words, the ColDesi UV 24H3R’s industrial roll fed UV direct to film printer can be an actual game changer for your business!
How UV DTF Printers Work
This is an inkjet process that uses a specially formulated ink. That UV ink, jets onto a rolled film to create the perfect decal for any application. [No heat press needed!]
Steps to Print and KEY Benefits
The ColDesi UV24H3R may LOOK like a standard ecosolvent printer, but the uv dtf printing process is far different.
Coupled with the Print Optimizer Software, the ColDesi UV DTF printer here is capable of High Resolution, Variable printing. Create your image, then you can apply any text of graphic variables to a print run. Barcode data, images, place, person or product names – all print in endless variation in a single run.
The beautify of UV based DTF printers is in the Instant dry. Instant curing means that, unlike with other roll to roll printers, there’s no degassing time required. No yards of table space necessary to park the prints to “dry” before the next step.
And… NO WEEDING!
Not all “direct to film” prints are the same! The ColDesi UV 24H3R includes automatic lamination – that eliminates the need for an external laminator that’s required by other technologies.
Once you print, you simpley take the decal off the roll and apply.
Introducing UV DTF
How UV DTF Works
Quick Comparisons

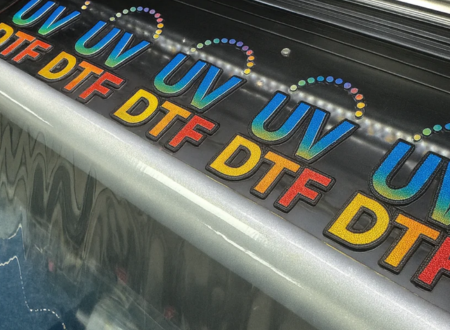

- No Weeding! You can store those dental tools for good. The ColDesi UV 24H3R produces perfect, ready to apply decals.
- Single step – including DRYING, white ink and clear coat application built-in. [think of all the time AND shop space you’ll save].
- Auto Lamination – think of the time and space you’ll save just by doing away with the lamination process.
Some companies use affordable white toner transfer printers, such as the Luminaris 200, which we also provide, to create decals. However, it’s important to note that this is not a direct comparison.
While these are capable single sheet t-shirt transfer printers the per print cost and time to print makes them suited to more casual decal/sticker printing.
Fixed costs for a 21.5cm x 27.9cm (8.5” x 11”) pair of (A & B papers) are approximately £1.42 a pair making a 11.4cm (4.5”) decal (2 per sheet) at least £0.71 each vs the roughly £0.11 that the UV DTF printer produces.

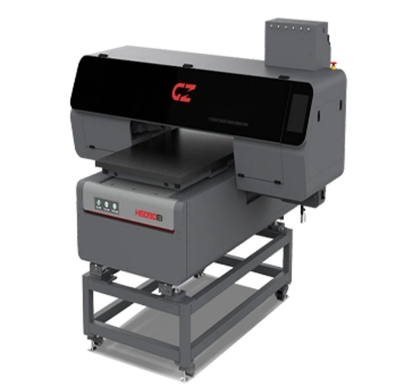

Direct to Object / Substrate UV printing is a great option if you are printing on a flat object within the size of the UV printer bed.
Systems like the Compress iUV600s can print high colour graphics onto almost any flat surface, provided it’s with the 600 x 450 mm print bed specifications.
And while it and other UV Printers like it CAN print on cylindrical objects like metal water bottles, there are a few caveats:
- It prints on cylindrical objects very slowly
- Complex cradles need to be added and removed when changing from cylinders to flats again.
- Uneven shapes are best avoided
In other words, in the long minutes it takes to print onto a Single Tumbler you could apply dozens of high quality branding decals produced by the all new YES iUV 24/H3R.
The ColDesi 24H3R UV dtf transfer printer is just a better choice than screen printing or vinyl cutting for producing large volume custom designs onto quality transfers.
UV dried transfer film requires no heat press, no air dry time and no weeding!

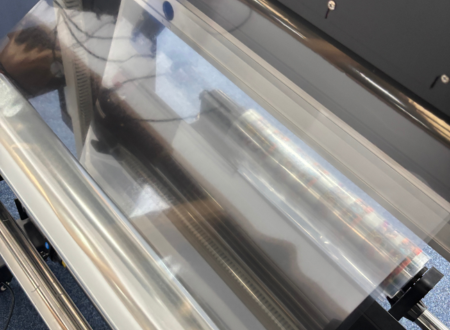

- Roll-fed UV Printer
- Direct to Film Adhesive Transfers
- Self-sufficient Roll to Roll Machine
- Vibrant Full-Colour Digital Prints

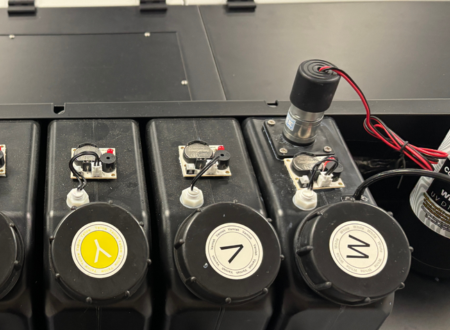

- Incorporates white, colour, clear, and lamination in one unit
- Over 4.8 linear mtr (16 linear feet) per hour at (57.15cm) 22.5” inches wide
- User-friendly maintenance with reliable UV print technology
- Low Supply Costs
In other words, what can you do with a COLDESI UV 24H3R UV/DTF Printer?
Sample ColDesi UV DTF Printer Applications:
- Unique shaped Tumblers
- Equipment/Machine Branding
- Promotional Decals
- Awards & Trophies
- Kitchenware
- Wholesale Transfers
- ColDesi UV 24/H3R
- Training: Equipment, Software & Maintenance
- Support: Phone Email & Video
- Speed: Prints upto 4.63 Linear Mtr/HR
- Dimensions: L 160cm x W 90cm x H 130cm
- Applications: Wood, Metal, Plastic, Ceramic & much more
- Warranty: 1 Year (12 Months) Parts & Labour*
*All payments above are subject to businesses trading in excess of 3 years . Admin fee will apply, typically £145 + VAT at the prevailing rate. Tax relief shown is for illustration purposes only. Please contact your accountant who will be able to clarify tax matters for you. All finance agreements are subject to status and affordability checks. Terms and conditions apply. This quote is for an un-regulated finance facility.
iUV24H3R
3 x Industrial Grade I-Series 1600
Prints upto 4.63 Linear Mtr/HR (2.7sqm/HR – 30sqf/HR)
Colour Control
ICC colour profile with adjust function
Ink
UV (C,M,Y,K, White & Clear)
Temperature 15c/26c (60F – 80F)
Humidity 50%-70% (optimum 60%)
175cm x 96cm x 145cm (L x W x H)
Net Weight 180kg (397 lbs)
Customisation for Uneven Surfaces: The 24H3R allows for precise printing on irregular shapes and textures.
Enhanced Durability: The adhesive transfers created are robust and
long-lasting.
Streamlined Process: Simplify your workflow and reduce the time and effort required to produce high-quality adhesive transfers.
Unparalleled Product Support: Rely on YES to provide exceptional support and guidance throughout your printing journey.
Expanded Product Offering: Unlock new revenue streams and cater to a wider range of customers’ needs and preferences.
