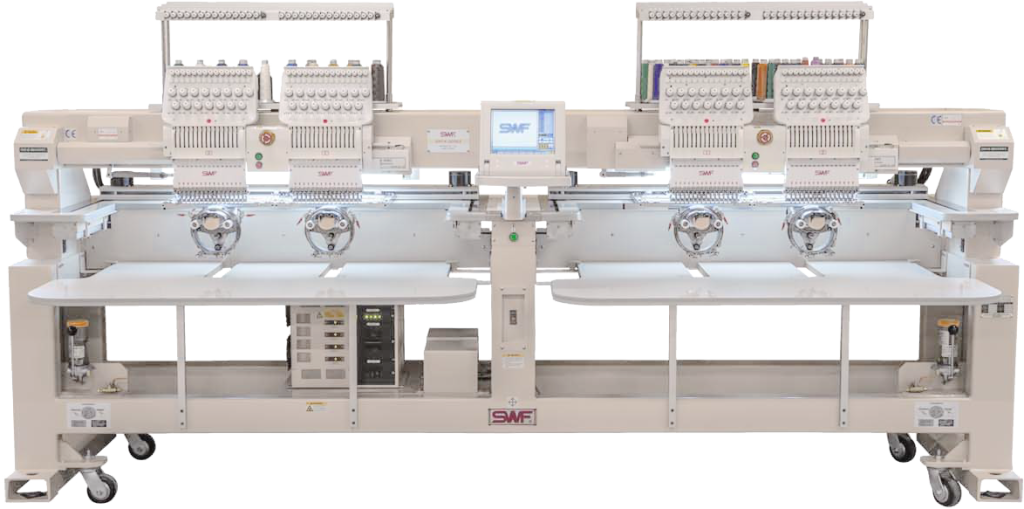

DUAL FUNCTION SWF/KE-UH1504D-45
4-Head Embrodiery Machine
For a growing embroidery shop, there’s nothing more important the versatility.
That decision to go from a single head 15 needle to something bigger is important, and will set the tone for your business expansion for years to come.
…30+ years potentially, since many of the original SWF machines delivered in the UK market are still producing work today!
That’s why the SWF KE Series, DUAL FUNCTION 4 head embroidery machine is such a valuable choice.
Because you can switch from smaller, multiple jobs by using it as 2 separate 2 heads OR power through a large order as a fast, commercial quality 4 head machine!
And it’s even more productive than a traditional 4 head on top of that.
Earn 20 to 25 per cent more than any other brand of embroidery machine with the same amount of heads. The ONLY embroidery machine on the planet that can embroider two different patterns and/or designs at the same time.
Yes! In fact, they’re so reliable and productive we can offer BOTH an industry out-standing FIVE-YEAR warranty, but a completely unique SEVEN-YEAR stitch quality warranty as well.
SWF Dual Function 4 Heads (2×2) operates as either a traditional 4 Head embroidery machine automatically increasing production or as two separate 2 Head embroidery machines giving the studio more flexibility to product runs – Up to 25% more! Laser Design Trace (gauge, square or optimised) – Electronic Hoop Select – Multi-language support, Supplied as standard with 15 colour needles, Directly Driven Trimming System, Oversized Body and Beam for strength and vibration free embroidery that will last over 30 years!.
The SWF KE Series Dual function does cost more than a normal machine, but if it lasts over 30 years, if it produces 25% extra for each of those years, then its going to make you Thousands of pounds more Profit!
So why would you not want more profit and more production ?
See the data in real time and learn more about why the SWF Dual Function multi-head embroidery machines beat the productivity competition.
Heads
4 heads (2+2)
Needles
15 Colours
Language
Multi-language support
Stitching Speed
1000 stitch per minute
Screen
15.1″ LCD Colour Touch Screen, Free Hand Lettering, Photo Stitch Digitizing, Stitch Editing
Connectivity
Wifi & Hard Wired Lan Enabled
Warranty
5 Years & 7 Years Stitch Quality Guarantee
Memory
20 million stitch memory
Stitching Field
Compact stitching field of up to 450mm x 400mm
Running volume
Quiet Running
Media USB
Yes
Power Failure recovery
Yes
Oil Lubrication System
YES - One Pull with Oil Reservoir (no oil holes)
Optional accessories
Optional Quick Change Caps or Bolt on Cap Systems – Veneer Badge Cutting Needles
Embroidery Hoops / Frames Included
5 Sets of Frames (8 of each size, total 40pcs)
Hoop/Frame Sizes Included
12cm, 15cm,18cm Rounds, 30cm x 30cm, 31.9cm x 43.9cm Jacket Backs
Border Frames and Tables
YES - 1 X Border Frame Per Machine
Tool Kit
Includes tools and parts
Thread Tubes
YES - Thread Tube guides
Embroidery Light
Better viewing
SWNS Software
Included for Lettering, Wifi/Lan Design Transfer
On-site Installation
Set up & Training inside The UK & Ireland
Thread Trappers
Yes
Bobbin Winder
Yes
Machine Oil and Grese
Yes
Operating Manual
Yes
Discover how the SWF/KE-UH1504D-45 industrial embroidery machines can transform your business. Contact YES Group (Your Embroidery Services Ltd) today for a live or web demonstration and to learn more about our flexible financing options.
Too Much machine for right now?
No problem! You can still get Dual Function flexibility in a smaller size with our SWF Dual Function 2 head machine.
SWF ES-T1202D
advanced Features
- Stitching field up to 360mmx270mm
- 15.1″ LCD Touchscreen Interface
- 40 million stitch memory
- 1200 Stitches per minute
- Dual function functionality!
Now you can reduce downtime from thread breaks, to do regular maintenance and even bobbin changes. 1 side can always be stitching.
Comes with on-site installation, set up and training as well as our 5 year warranty and 7 year stitch guarantee.
Get 2X the production with 2X the Heads
It’s simple math.
You not only pay less per head with the 8 head machine, but your production speeds doubles too!
SWF KX-UH1508-45
Don't let the photo fool you, this is a BIG, Productive embroidery machine.
- Smart Action Presser Foot (Adjust for any fabrice)
- Smart Tensioning System (8x the time savings!)
- Automatic oiling – letting you spend more time embroidering and less time on maintenance.
- Slim cylinder arm
- Automatic thread trimming
- WiFi
- More, more, more!
